PP Cartridge Filter Housing

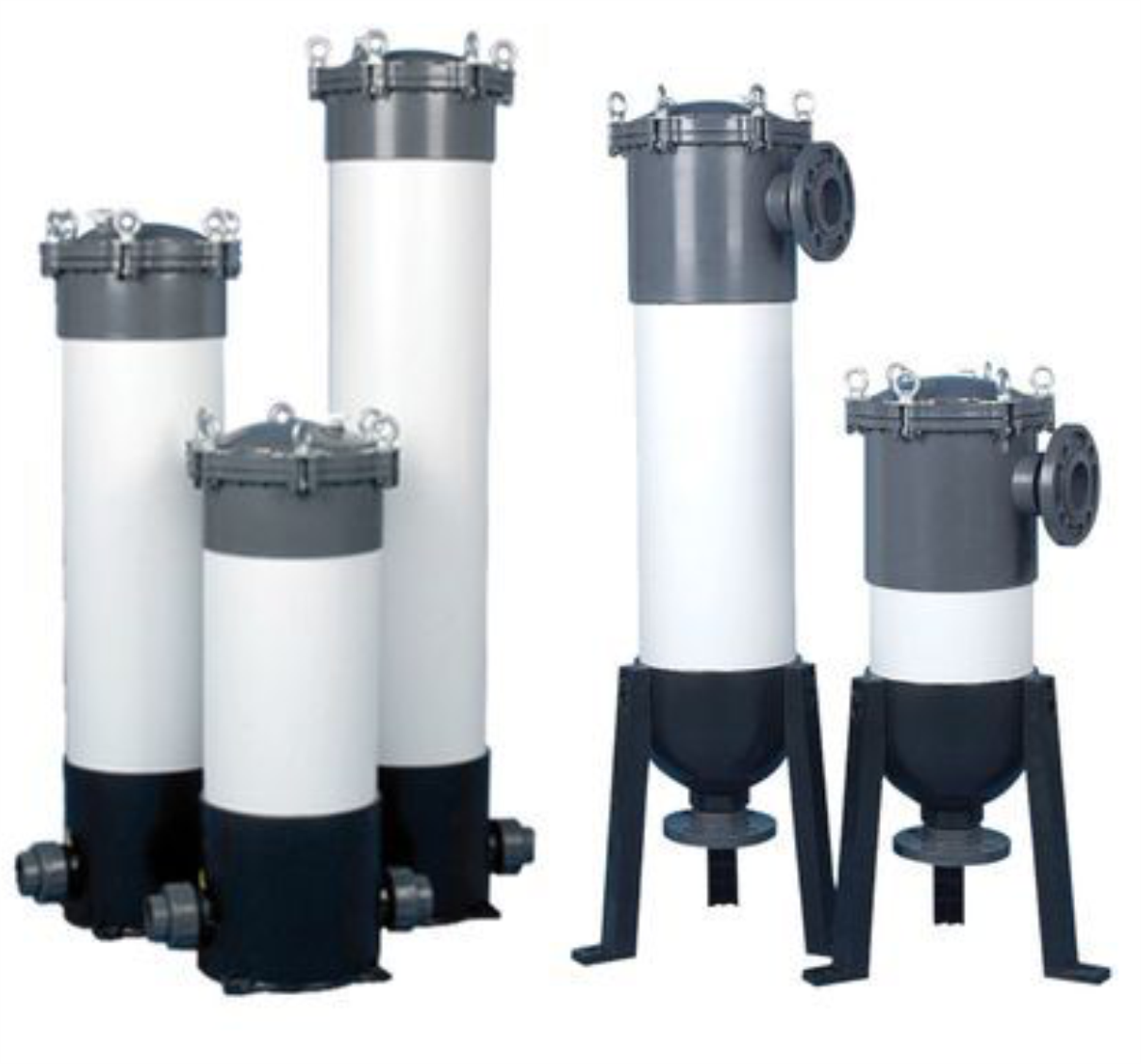

- SS filters offer PP molded opaque and transparent filter housings that are made using polypropylene. These housings are known for its chemical resistance. The housing can accommodate single cartridge of lengths of 125, 250 or 500 mm. They come in two sizes- standard and jumbo filter housing-depending upon the OD of the filter cartridge. They can be used in place of costly stainless steel filter housings.
Application
- Process Water
- Process Fluids
- Reverse Osmosis Pre Filter
- Beverages
- Plating Solution
- Fine Chemicals, Inks & Dyes
| Technical Data | |
|---|---|
| No. Of Bags | 5 and More on Request |
| Bag Sizes | Ø4”x10”, Ø4”x17”, Ø7”x17”, Ø7”x32” |
| Flow Rate | Up to 480 m³/hr ASME section VIII Division 1 or Good Engineering Practice |
| Design Code | Poly Propylene (PP), PVC |
| MOC | PVC |
| Pressure Rating | 1 – 15 bar, more on request |
| Temperature Rating | -25°C to +65°C, more on reques |
| Connection Size | 1” , 2”, 2.5” |
| Vessel Closure | Threaded Closer |
| Sealing Material | Neoprene / EPDM / NBR / PTFE / Teflon / Viton |
| Surface Finish/td> | Blue, White and Transparent |
| Accessories (Optional) | Pressure Gauge, Vent Valve, Drain Valve, D.P. Gauge |
