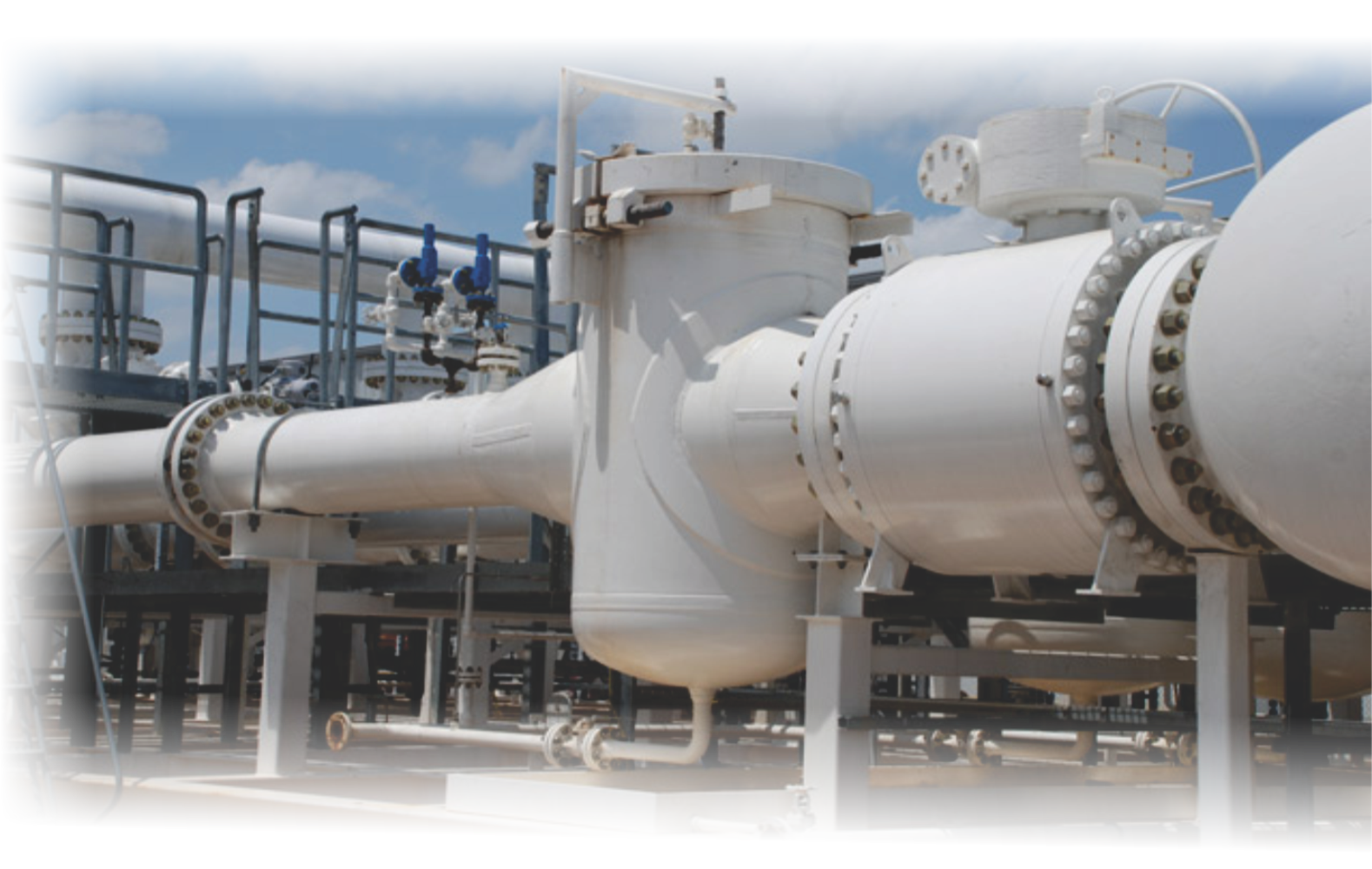

Basket Filter and Strainers
- Unique design filter housing designed for sea water desalination, heavy acid / alkali chemicals
- Materials included mild steel or carbon steel with rubber lining or FRP lining, duplex & super duplex
- Filter housing internals available in different material of construction to suit the end application
- Available in different design pressure
- Various inlet & outlet connection options available
- Custom design housing are available
- Balaji Filter has built filter housing for flow rate up to 1000 m³/hr
Application
- Power Plant
- Process Industries
- Cement Plant
- Steel
- Petrochemicals
- Fertilizers
- Refineries
- Oils & Gas
- Chemicals
- Textiles
| Technical Data | |
|---|---|
| Flow Rate | Up to 1000 m³/hr, more on request |
| Design Code | Good Engineering Practice, ASME section VIII Division 1 |
| MOC | MS, CS, Duplex 2205, Super Duplex 2507 |
| Pressure Rating | 1 – 15 bar |
| Temperature Rating | -25°C to +65°C, more on request |
| Connection Size | 4” – 20” |
| Connections | Flange |
| Vessel Closure | TC Clamped, Bolted |
| Sealing Material | Silicon / Neoprene / EPDM / NBR / PTFE / Teflon / Viton |
| Lifting Device | Davit Arm, Lifting Lug, Lifting Handle |
| Vessel Support | Legs, Skirt |
| Surface Finish | Matt Finish, Mirror Finish, Paint |
| Optional Finish | Rubber/FRP Lining and/or Painting |
| Customized Design | Available in customized design to accommodate specific requirements |
| Accessories (Optional) | Pressure Gauge, Vent Valve, Drain Valve, D.P. Gauge |
