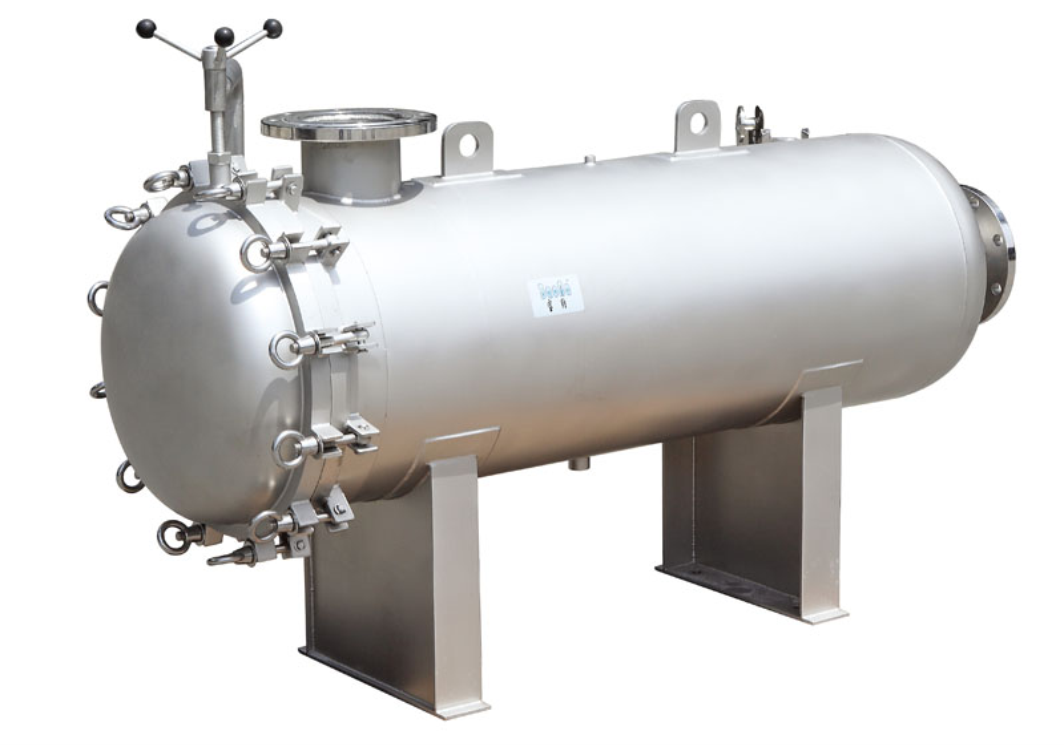

Horizontal Cartridge Filter Housing
- Suitable for high flow cartridges which provides better flow rates than traditional cartridge filter housing of same size
- More economical option due to smaller size requirements
- Available in both horizontal as well as vertical design
- Operator friendly quick opening closure (QOC) option available that simplifies handling
Application
- Processing Chemicals
- Petroleum Derivatives
- Coolants
- Cutting Oils
- Cleaning Fluids
- Vegetable Oils
- Edible Oils
- olymers
- Paints
- Inks
- Resins
- Pharmaceuticals
- Sugar Syrup
| Technical Data | |
|---|---|
| No. of Cartridges | Up to 25, more on request |
| Cartridges Length | 40”, 60” |
| Flow Rate | Up to 1500 m³/hr, more on request |
| Cartridge Fitment | Plug-in |
| Design Code | Good Engineering Practice |
| MOC | ASME section VIII Division 1 |
| Pressure Rating | Carbon Steel, Mild Steel, Duplex 2205, SS 304/304L, SS 316/316L |
| Temperature Rating | 1 – 15 bar |
| Connection Size | more on request -25°C to +65°C, more on request |
| Connections | 4” – 20” |
| Vessel Closure | Flange |
| Sealing Material | TC Clamped, Bolted Silicon / Neoprene / EPDM / NBR / PTFE / Teflon / Viton |
| Lifting Device | Davit Arm, Lifting Lug, Lifting Handle |
| Vessel Support | Legs, Skirt, Saddle |
| Surface Finish/td> | Matt Finish, Mirror Finish, Paint |
| Optional Finish | Electro Polish, Rubber/FRP Lining |
| Customized Design | Available in customized design to accommodate specific requirements |
| Accessories (Optional) | Pressure Gauge, Vent Valve, Drain Valve, D.P. Gauge |
